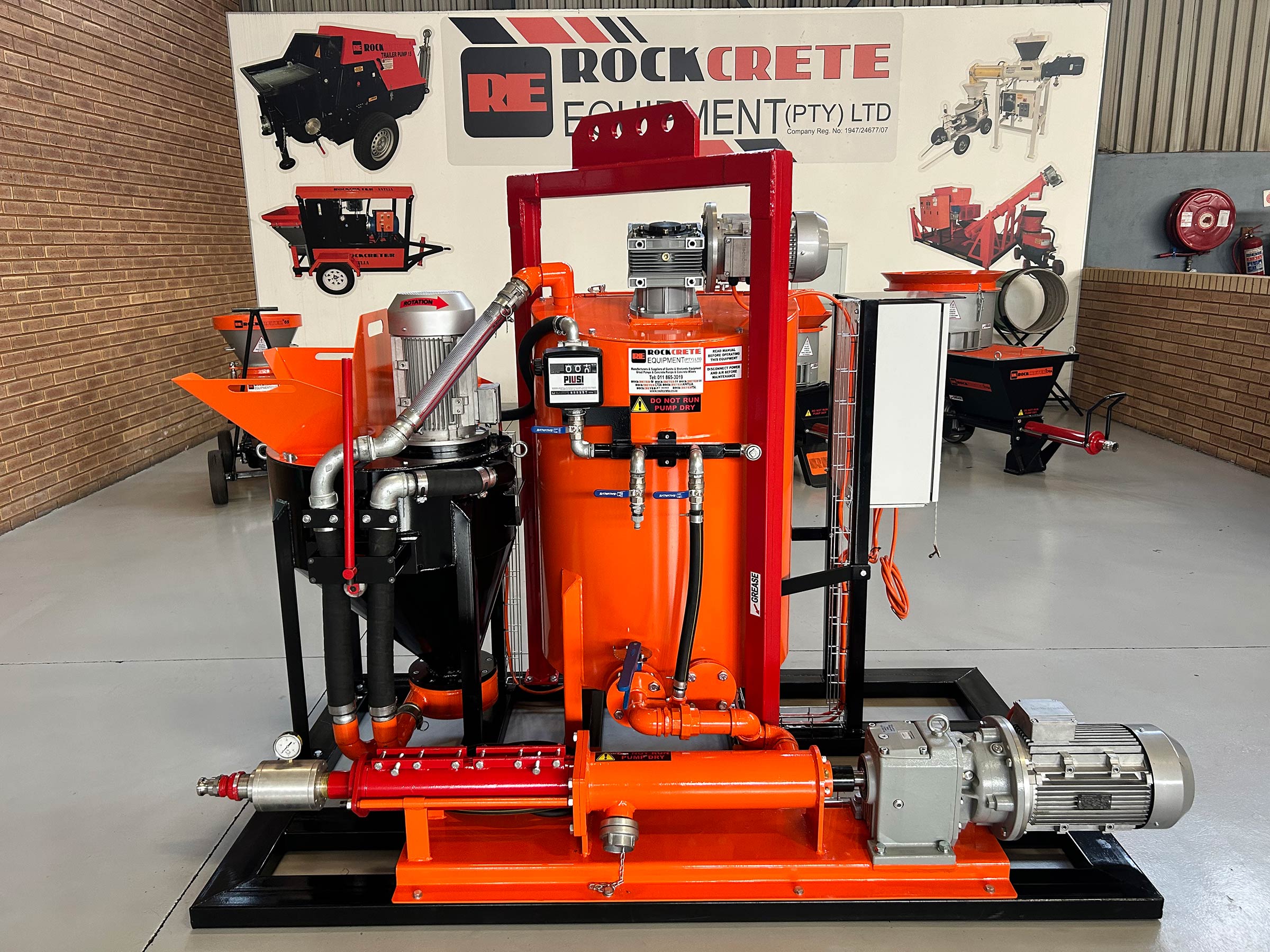

Rockcreter High Shear Mixer/Agitator Grout Plant

Category: Grout Mixers, Grout Pumps

Solutions for cementitious grout mixing & pumping

The colloidal mixer is particularly suitable for the consistent mixing of water, cement, bentonite and other fine materials. A robust mixing tank combined with an agitator tank and grout pump with highly wear resistant materials in the mixing pump guarantee a long service of life.

• Preparation of suspensions consisting of water, cement, bentonite and other fine materials.
• Specialized grouting
• Injection grouting

2350mm

1300mm

2000mm

+900kg

• Electric motor: 7.5kW
• Mixing capacity: 100Ltr
• Rotation speed: 1450Rpm
• Internal Flow Speed: 900Ltr/min
• Approx Capacity: 5cub m/hour
• Water connection: 1” Bsp
• Liquid temp: Max 40°C

• Electric motor: 2.2kW
• Mixing capacity: 400Ltr
• Rotation speed: 35Rpm

• Max flow: 64Ltr/min
• Max grout pressure: 40 bar
• Output diameter: 1-1/4”
